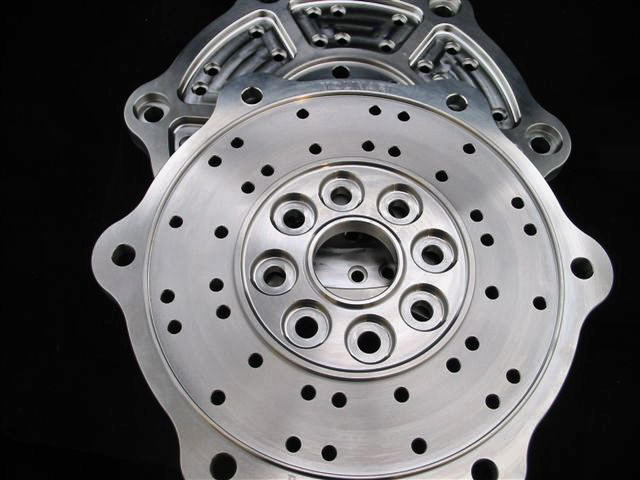

Click on the images for a larger view	TITANIUM PARTS AND COMPLETE CLUTCHES AVAILABLE. SHOWN HERE ARE 10" BIG STAND TITANIUM FLYWHEELS. WE HAVE FULL TITANIUM MANUFACTURING CAPACITY IN HOUSE. PLEASE CALL FOR MORE DETAILS ON TITANIUM PRODUCTS.
	.094 INSTRUCTION BOOKLETS. AVAILABLE FOR FULL CENTRIFUGAL CLUTCHES OR .702 RING HEIGHT PEDAL CLUTCHES. COVERS INSTALLATION BASICS AND OTHER USEFUL INFORMATION.
	CLUTCH DISCS: AVAILABLE IN 10"/10.5/10.7 AND 11" ALL AVAILABLE WITH MOST HUB COMBINATIONS. WE USE RAYBESTOS (NO ASBESTOS) CLUTCH DISCS WHICH ARE STANDARD WITH MOST CLUTCH MANUFACTURES TODAY. AVAILABLE IN TWO COMPOUNDS "5191" WHICH IS CONSIDERED STANDARD AND ALSO "5135" (10" AND 11"ONLY) FOR SPECIAL APPLICATIONS. CALL FOR MORE DETAILS
	11" FACING PLATES FITS POPULAR 11" CENTRIFUGAL CLUTCHES .240 THICK PRECISION GROUND AND MACHINED

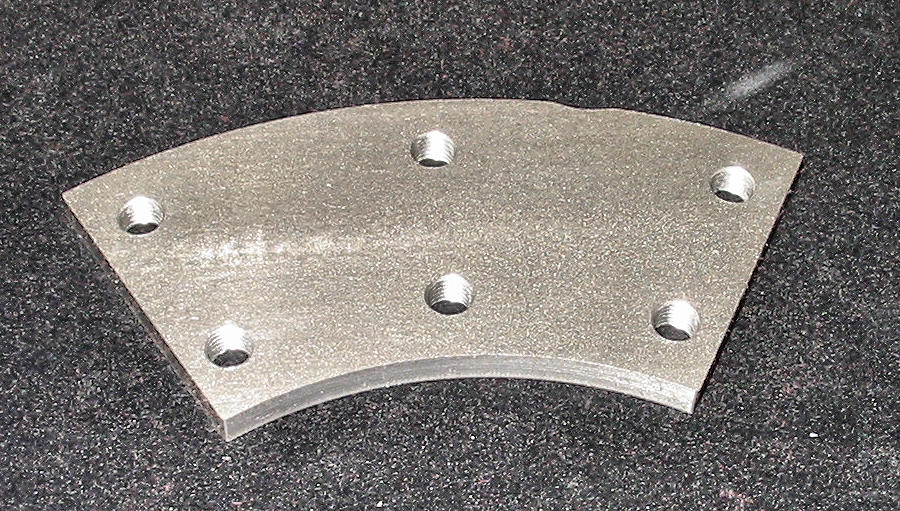

	10" AND 10.5 FACING PLATE SEGMENTS FITS POPULAR PEDAL AND CENTRIFUGAL CLUTCHES, PRESSURE PLATE OR FLYWHEEL (FLYWHEEL SHOWN) AVAILABLE IN .250 AND .312 THICKNESS. MUST BE GROUND AFTER INSTALLATION. CALL FOR DETAILS
	10.7 FACING PLATE SEGMENTS FITS POPULAR 10.7 PEDAL AND CENTRIFUGAL CLUTCHES, PRESSURE PLATE OR FLYWHEEL (PRESSURE PLATE SHOWN) AVAILABLE IN .250 AND .312 THICKNESS. MUST BE GROUND AFTER INSTALLATION. CALL FOR MORE DETAILS

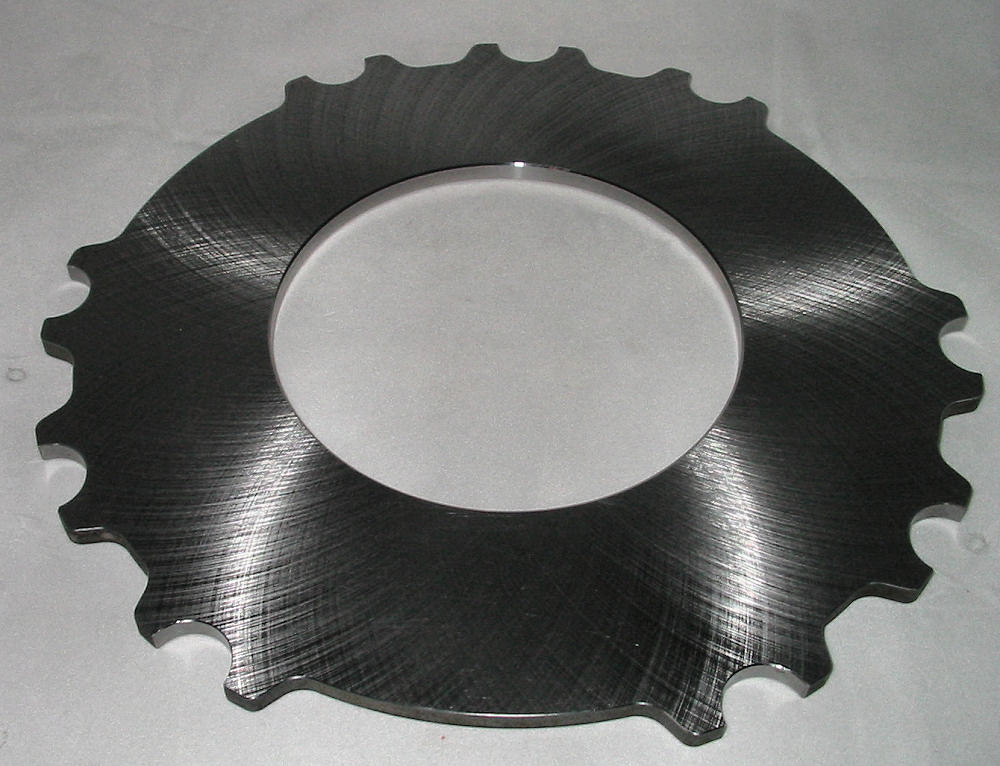

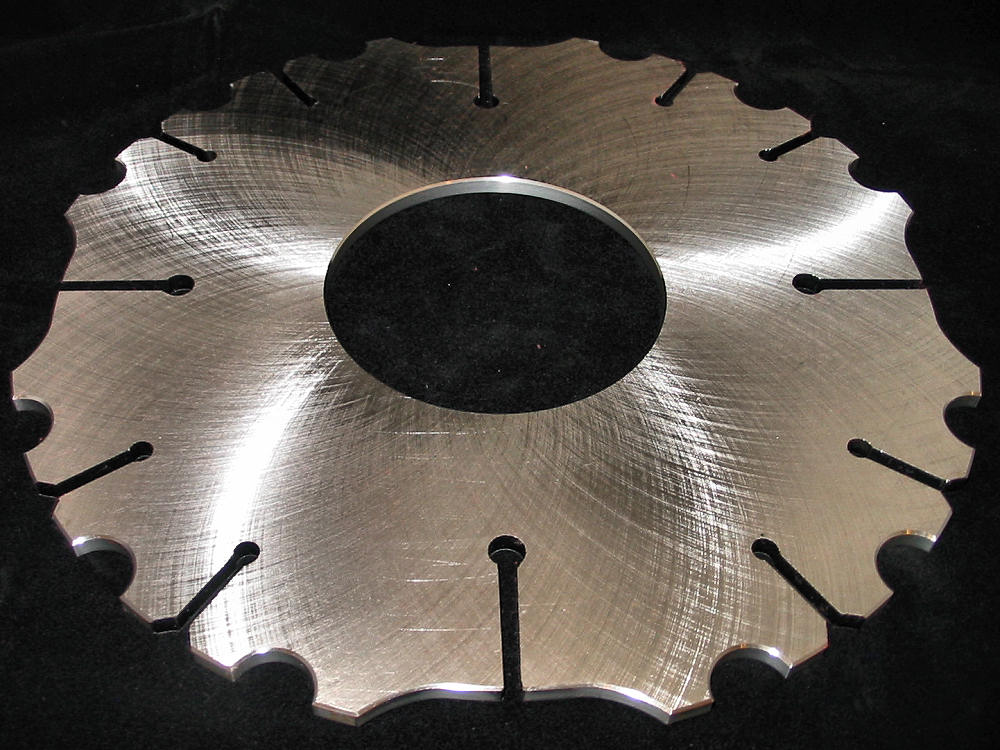

	11" FLOATER PLATES WITH 9 DRIVERS. FITS 11" CENTRIFUGAL OR PEDAL CLUTCHES .280 THICK, HEAT TREATED AND DOUBLE PROCESS GROUND FOR FLATNESS.
	10" AND 10.7 FLOATER PLATES, BIG OR SMALL STAND .350 THICK WITH 3 CUTTERS PER SIDE. HEAT TREATED, FULLY CNC MACHINED AND DOUBLE GROUND FOR FLATNESS
	12.5 FLOATER PLATES, FITS PEDAL OR FULL CENTRIFUGAL CLUTCHES "NEW" WITH 12 STAND DRIVE LUGS, .280 THICK AND FULLY MACHINED PERIMETER AND PRECISION GROUND FINISH
	COUNTER WEIGHTS. AVAILABLE IN 1/4" OR 5/16 4 GRAM, 8.5 AND 10 GRAM SLUGS AVAILABLE FOR 5/16 BOLTS. MORE AVAILABLE PLEASE CALL
	DIAL INDICATOR. WORKS ON ALL .702 PEDAL CLUTCHES OUT THERE. CALL FOR MORE INFORMATION AND PARTS FOR YOUR PEDAL CLUTCH

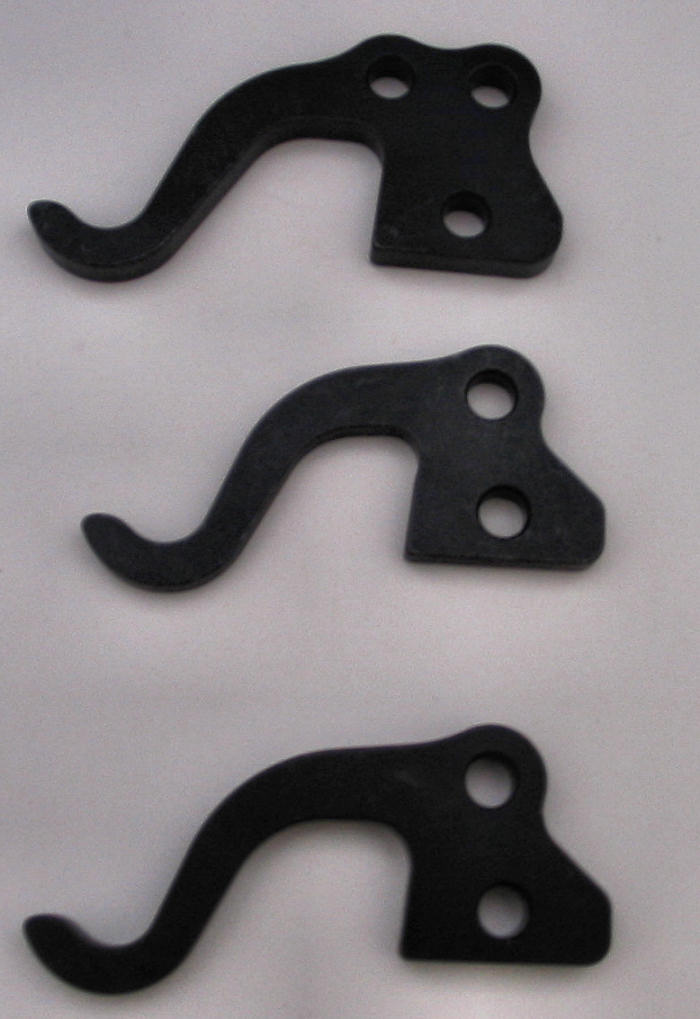

	LEVERS. SHOWN HERE ARE A FEW OF THE POPULAR LEVERS WE OFFER FOR THE 10" AND 11' CENTRIFUGAL CLUTCHES. CONSTRUCTED OF AIRCRAFT ALLOY AND HEAT TREATED FOR MAXIMUM DURABILITY. AVAILABLE IN .250 .305 AND .365 WIDTHS. ALSO AVAILABLE WITH HARD FACING AGENTS FOR ADDED DURABILITY. MORE LEVERS AVAILABLE FOR A/ FUEL AND OTHER APPLICATIONS. PLEASE CALL FOR MORE INFORMATION.

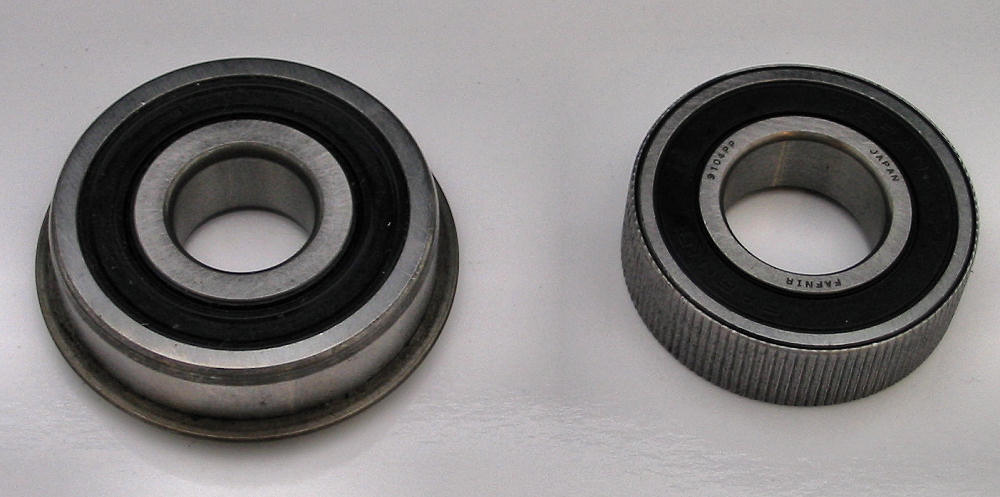

	PILOT BEARINGS. AVAILABLE FOR ALL CLUTCH APPLICATIONS. SHOWN IS THE MOST POPULAR .787 FOR CHRYSLER (IN FLYWHEEL) APPLICATION AND CHEVROLET (IN CRANK) APPLICATIONS WITH SLEEVE. MANY MORE AVAILABLE. PLEASE CALL FOR INFORMATION.
	STALL STUDS. TOP QUALITY ARP STUDS. FITS VIRTUALLY ALL CENTRIFUGAL CLUTCHES. LONGER VERSION ALSO AVAILABLE. CALL FOR MORE INFORMATION
	STALL SPRINGS. THIS IS THE DIRECT REPLACEMENT SPRING FOR MOST AUTOMOTIVE APPLICATIONS, INCLUDING DRAG RACING AND TRUCK OR TRACTOR PULLING. SOMETIMES REFERRED TO AS THE "BLUE" SPRING. TOP QUALITY WITH SAME PRESSURE AND RATE AS ORIGINAL EQUIPMENT ON MOST CENTRIFUGAL CLUTCHES. PLEASE CALL FOR MORE INFORMATION.
	STALL SPRINGS. THIS IS THE BIG ONE, USED FOR DIESEL TRACTOR APPLICATIONS ON CENTRIFUGAL CLUTCHES AND ALSO A/ FUEL DRAGSTER CLUTCHES. REFERRED TO SOMETIMES AS THE (BROWN) SPRING. TOP QUALITY AND SAME PRESSURE AND RATE AS ORIGINAL EQUIPMENT. PLEASE CALL FOR MORE INFORMATION.

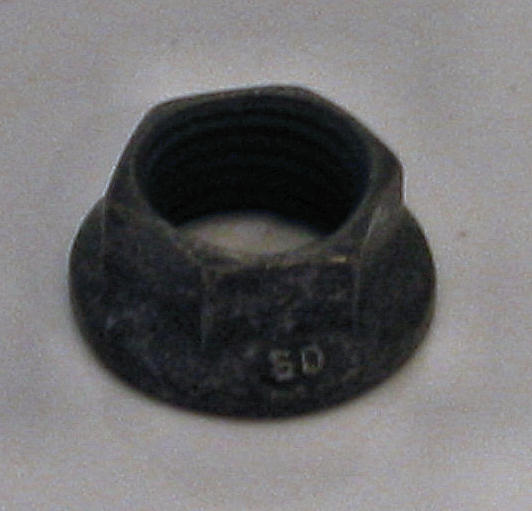

	STALL STUD NUTS. AVAILABLE IN "CASTLE" STYLE OR JET NUT (SHOWN) BOTH LOCKING. CALL FOR MORE INFORMATION

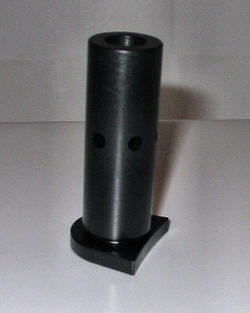

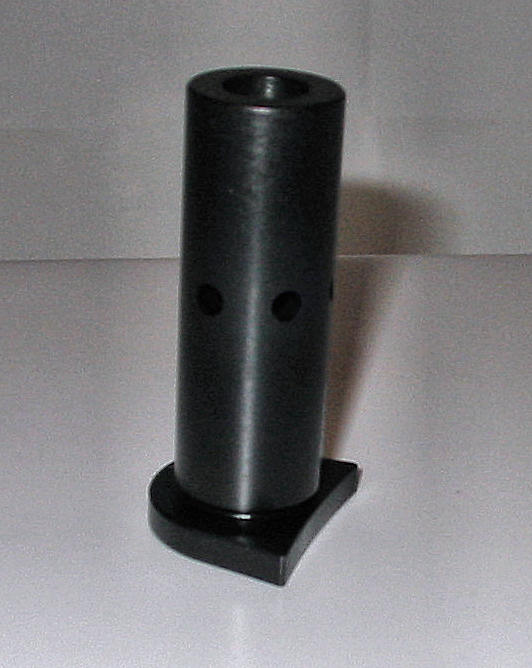

	STANDS. FITS MOST 10" AND 11" CENTRIFUGAL CLUTCHES WITH .500 DIAMETER STUDS. CNC CONSTRUCTED FROM AIRCRAFT ALLOY THEN HEAT TREATED FOR MAXIMUM DURABILITY AND WEAR. THE STAND FOOT AGAINST THE FLYWHEEL OFFERS A LARGER FOOT PRINT THAN DOES ORIGINAL EQUIPMENT ON MOST CLUTCHES. THIS ALLOWS MUCH GREATER TORT IONAL STABILITY AND ADDED STRENGTH. AVAILABLE IN 2. 3 AND 4 DISC LENGTHS. CALL FOR MORE INFORMATION

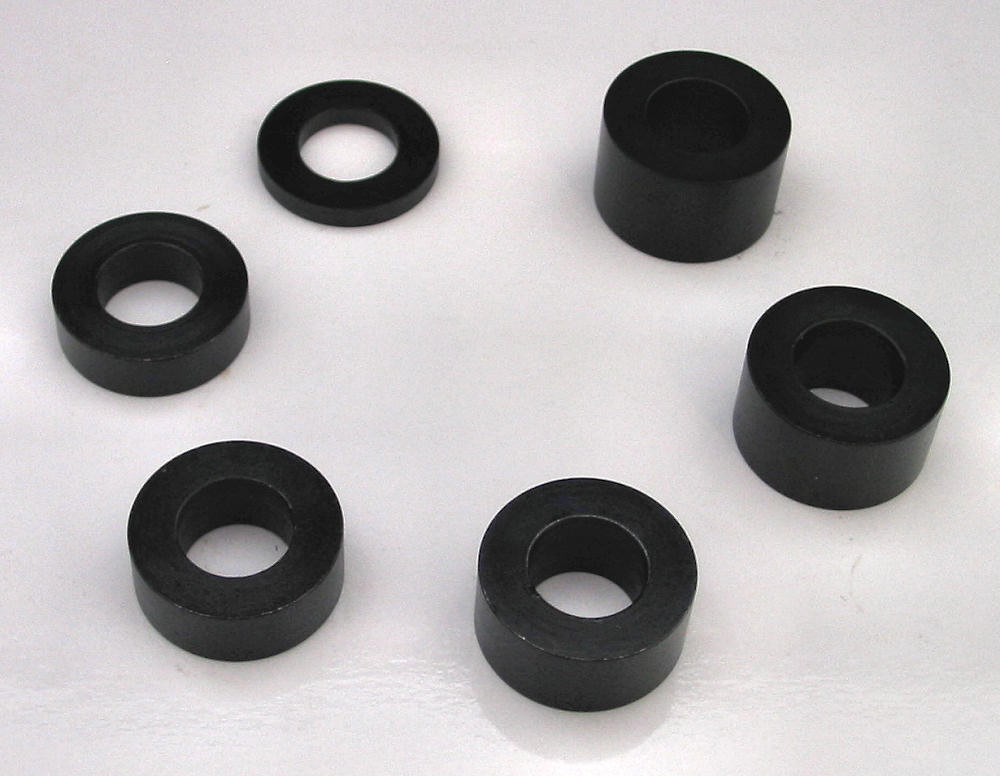

	STAND SPACERS. STEEL STAND SPACERS FOR .925 DIAMETER STANDS. AVAILABLE IN 8 LENGTHS .125/.200/.275/.350/.425/.500/.575 AND .600 FITS .500 STUD DIAMETER CALL FOR MORE INFORMATION
	STAND STUDS, NUTS AND SLEEVE WASHERS. STAND STUDS ARE TOP QUALITY A-1 PARTS. WILL FIT MOST 10" AND 11" CENTRIFUGAL CLUTCHES USING .500 STUD DIAMETERS ALONG WITH OUR AIRCRAFT QUALITY 12 POINT NUTS AND SLEEVE WASHERS, THESE ARE TOP OF THE LINE PARTS. AVAILABLE IN 2,3 AND 4 DISC LENGTHS. CALL FOR MORE INFORMATION
	STAND STUDS, NUTS AND SLEEVE WASHERS. FITS MOST APPLICATIONS WITH 9/16 STUD WITH 1.062 HEAD DIAMETERS. TOP QUALITY ARP STUDS AND AIRCRAFT QUALITY NUTS AND SLEEVE WASHERS. AVAILABLE IN 2,3 AND 4 DISC LENGTHS. CALL FOR MORE INFORMATION

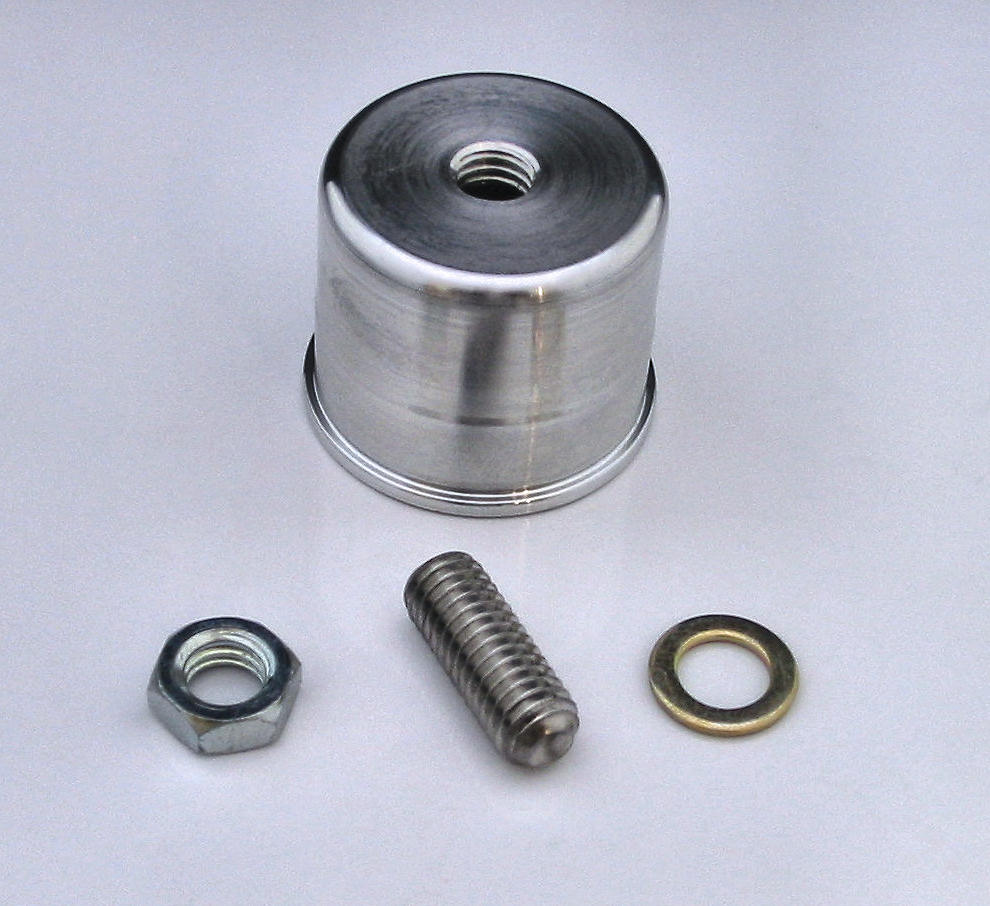

	STATIC SPRING CUPS. DIRECT REPLACEMENT PARTS FOR 10" AND 10.7 CLUTCHES USING THE 1.270 SPRING DIAMETER OR #480 BASE SETUPS. CALL FOR MORE INFORMATION

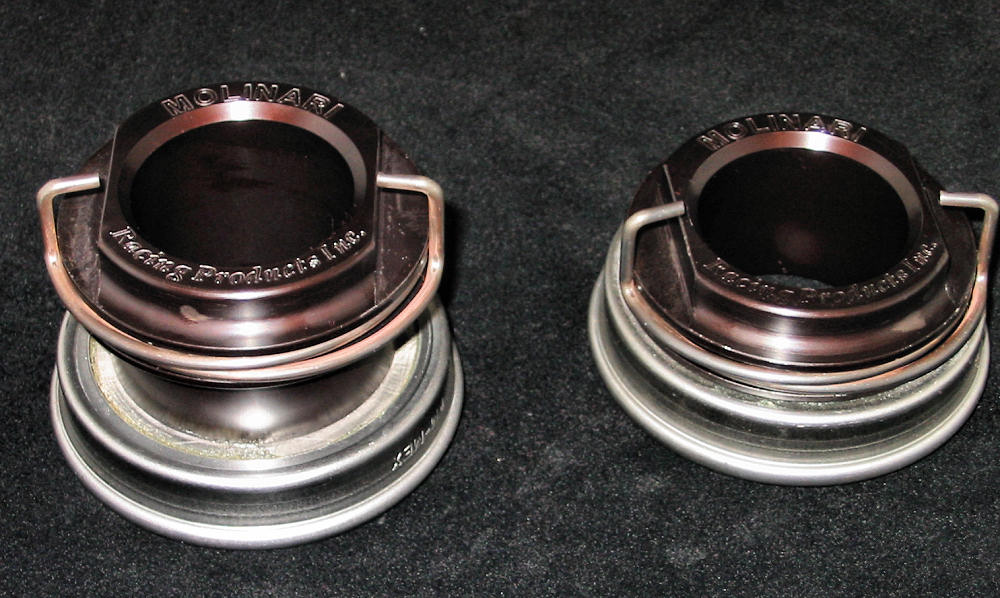

	THROW OUT BEARINGS. FITS MOST STANDARD CROSS SHAFT AND RELEASE FORK ASSEMBLIES. MADE OF AIRCRAFT ALUMINUM AND HARD ANODIZED FOR ADDED DURABILITY. ANTI TWIST DESIGN KEEPS ASSEMBLY FROM ROTATING ON THE FORK. AVAILABLE IN 5 LENGTHS. ALL PARTS AVAILABLE SEPARATELY. CALL FOR MORE INFORMATION.
